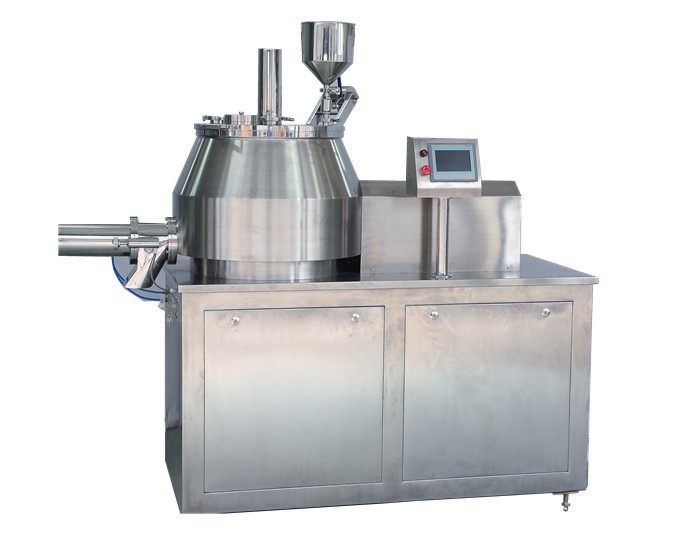

High Speed Granulator KY-50

Product Item : KY-50
Category： Granulator
Feeding Quantity (kg/batch) :8-20
Final Granular Size (mm) :￠0.14-1.5 (12-100mesh)
Air Compressed (m3/mpa):0.3/0.7
Dimension(L*W*H): 1750*600*1620MM
Product description：High Speed Granulator
INQUIRY

Performance

High speed mixer & granulator is a high efficiency and high speed equipment. It can mix different powder materials and granular in one process, widely used in pharmaceutical, foodstuff and chemical industries.

Main Technical Data

Product No.	KY-50
Total Volume (l)	50
Feeding Quantity (kg/batch)	8-20
Mixing Granulating Time (min)	mixing2, granulating 7-15
Final Granular Size (mm)	￠0.14-1.5 (12-100mesh)
Mixing Motor (kw)	5.5
Rotational Speed of Mixing (r/min)	25-500
Rotational Speed of Gutter (r/min)	50-3000
Granuating Motor (kw)	1.5
Air Compressed (m3/mpa)	0.3/0.7
Water Inlet Pipe (mm)	8
Air Inlet Pipe (mm)	8
Overall Size (mm)	17506001620
Weight (kg)	500
