ZG-20㎡ FREEZE DRYER

Product Item : ZG-20㎡
Category： Freeze Dryer
Input capacity:200Kg
Power supply:380V/50Hz/3P
Machine size（L*W*H）:5000×1600×2500mm
Product description： FREEZE DRYER
INQUIRY

ZG-20㎡ FREEZE DRYER

1.Dry at low temperature, the loss of some volatile components is very small. So it is fit for some chemical products, pharmaceuticals and food drying.
2. During the freeze-drying process, the growth of microorganisms and enzymes function does not proceed, so they can maintain the original character.
3.Freeze-drying within the frozen state, the volume is almost unchanged and maintain the original structure, and no enrichment phenomenon.
4.After drying, the material will be loose and porous, like sponge. After adding water the material dissolves rapidly and completely and
regain the original character almost immediately.
5.As drying under vacuum, there is little oxygen, so a number of easily oxidized components have been protected.
6.Drying can eliminate more than 95- 99% of moisture, so that the dried product can be stored for a long time without deterioration. Therefore, the freeze-drying is widely used in pharmaceutical industry, food industry, researches and other ways

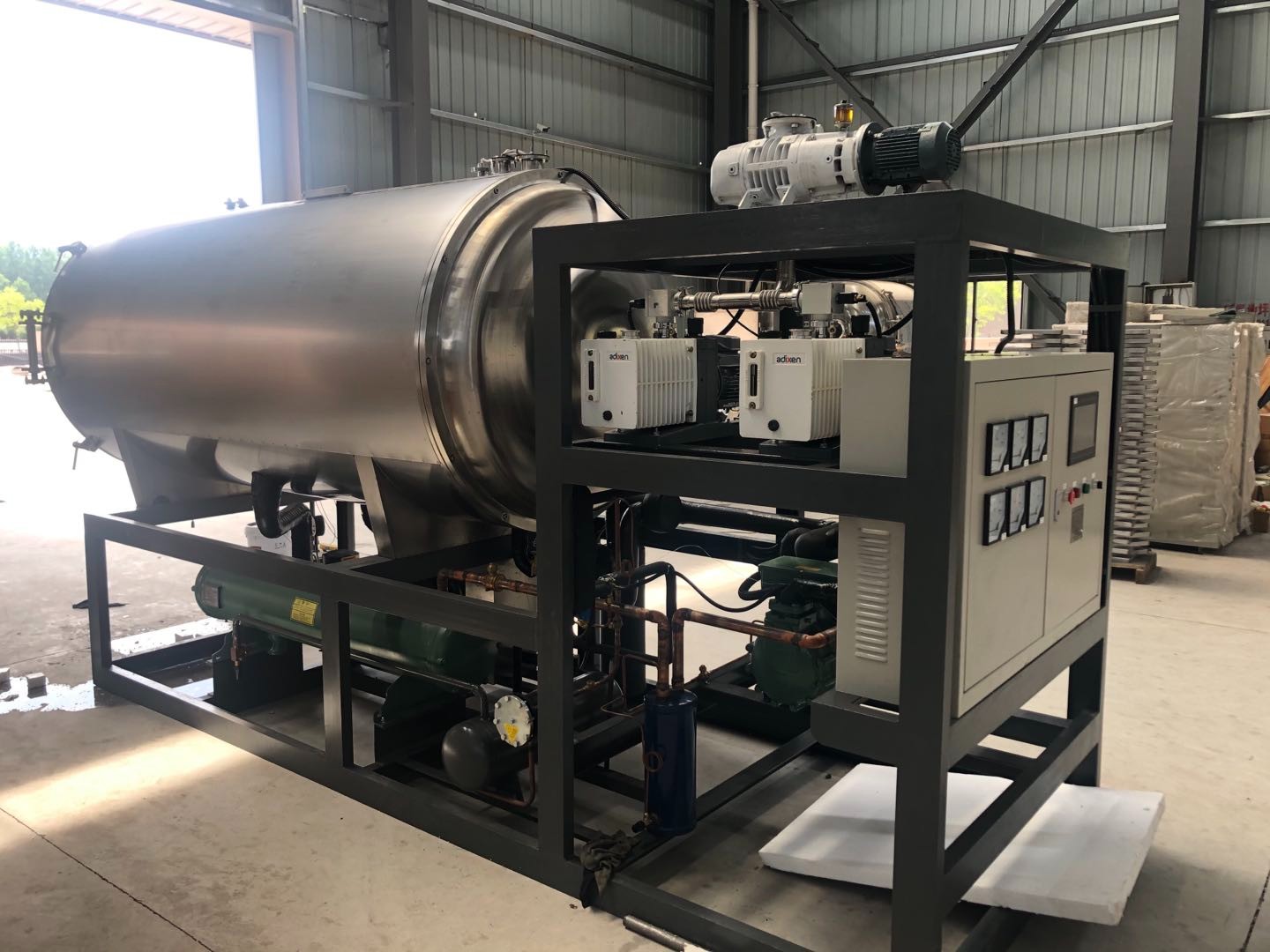

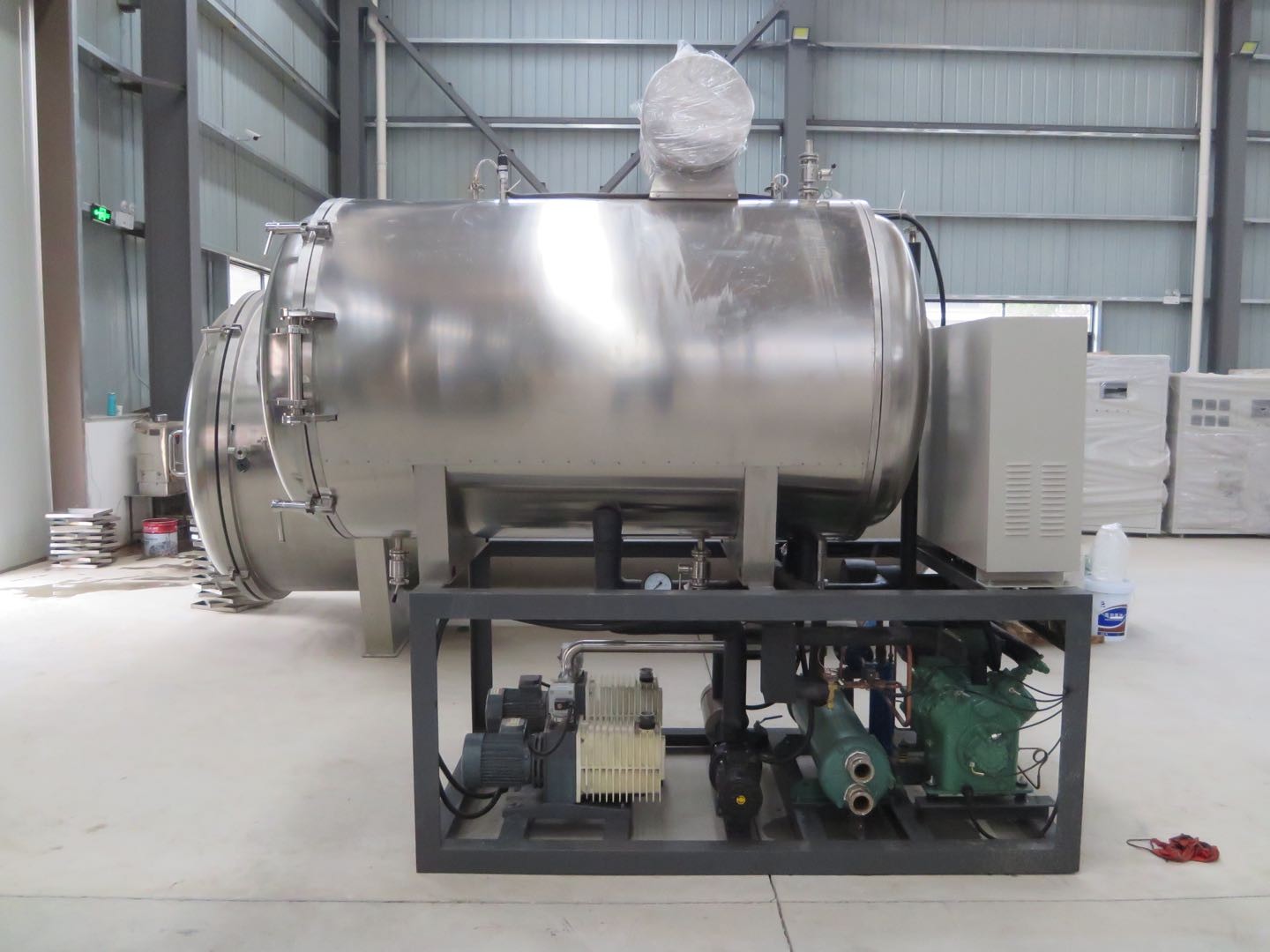

ZG-20㎡ Freeze Dryer
Construction	Technical parameters	Remark
Base Structure
Effective area of shelves	20㎡
Input capacity	200kg
Maximum Condenser capacity	400kg/batch
Power supply	380V/50Hz/3P
Power consumption	64.3Kw
Cooling Water	20T/Hr	Recyclable
Machine size（LWH）	subject to the actual design
Main Structure	Unity Type
Weight	8500Kg
Dry Chamber
Dry Chamber Material	SUS304/ 6mm thick
Dry Chamber Shape and dimension	Cylinder Φ1600×1800
Door lock	Hand knob lock
Door Open direction	Right to left	Decided by customer
Open angle	＞110°
Door material	SUS304
Surfaceness	Ra≤0.5um
Observation window	Frost-resistant glass φ200mm、δ25~27	Installed on the front
Door seal	Medical o section silicone rubber seal
Temperature sensor	T-type thermocouple
CIP(clean in place)	SUS304 wide angle sprayer
CIP inlet valve	Ningbo
CIP outlet valve	Ningbo
pipe	SUS304

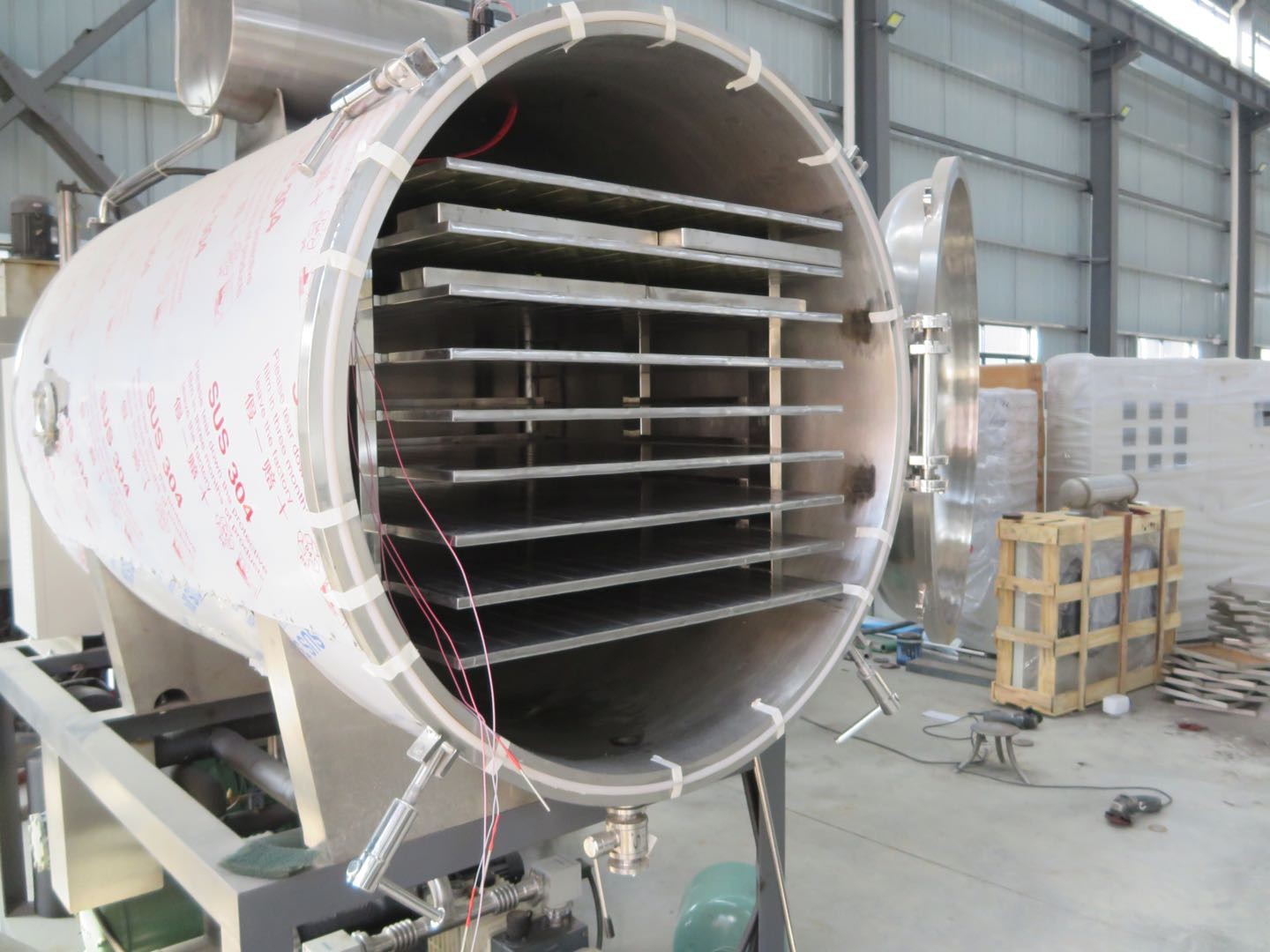

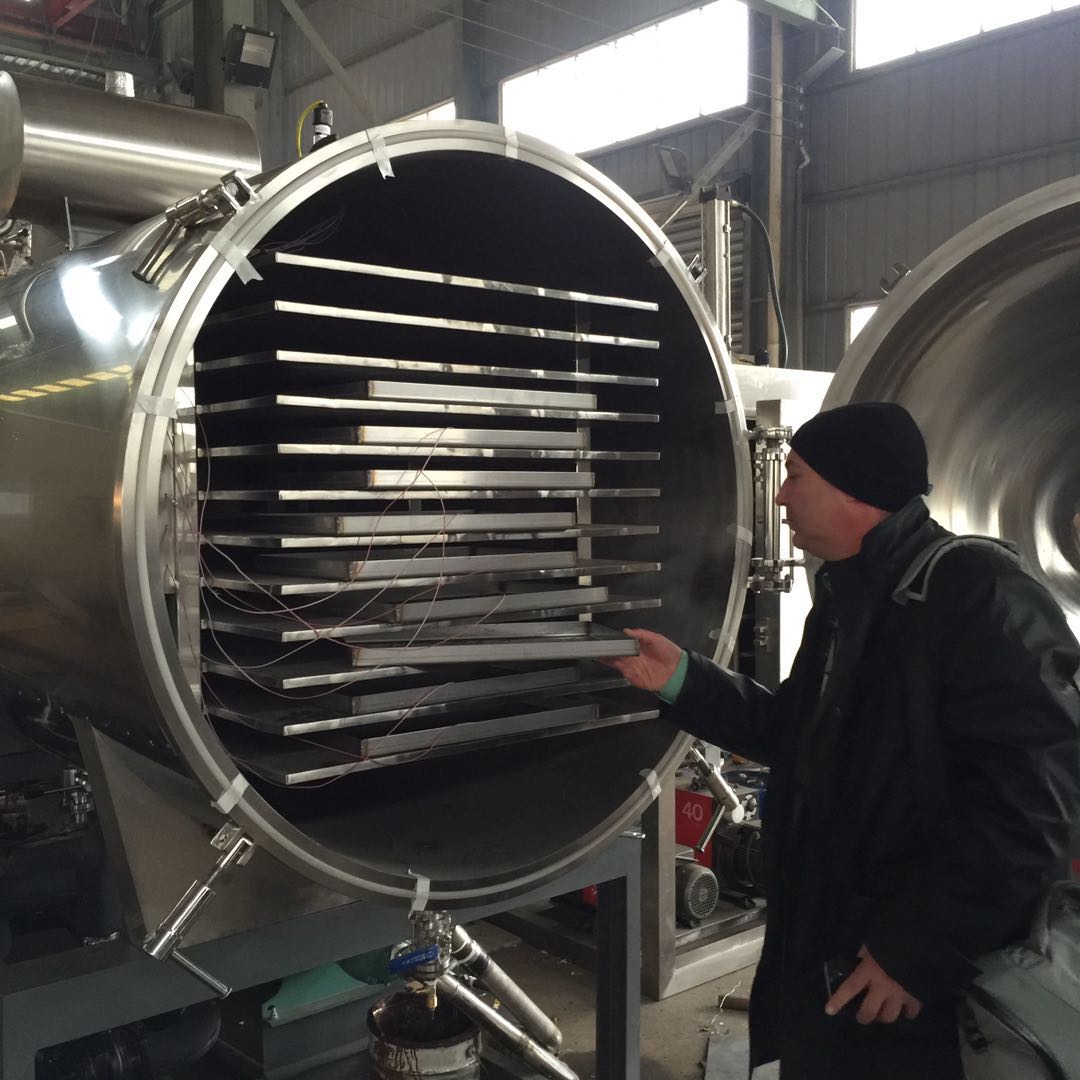

Shelves
Shelf material	SUS304
Shelf Surfaceness	Ra≤0.5um
Shelf quantity.（pc）	14+1 Layers	The top layer of the shelves is temperature compensation
Stainless steel tray	ANHUI KEYO 47032530mm	126pcs
Distance between shelves	75 mm
Shelf dimension（LWH）	1430100015/ layer
Shelf Cooling Rate	+20~-40℃≤60min	No-load
Shelf lowest temperature	-50℃
Shelf highest temperature	+70℃
Heating power consumption	24Kw/380V/50Hz
Shelf fence	prevent the tray cross over the shelf
