  • KY AUTOMATIC VERTICAL PACKAGING MACHINE

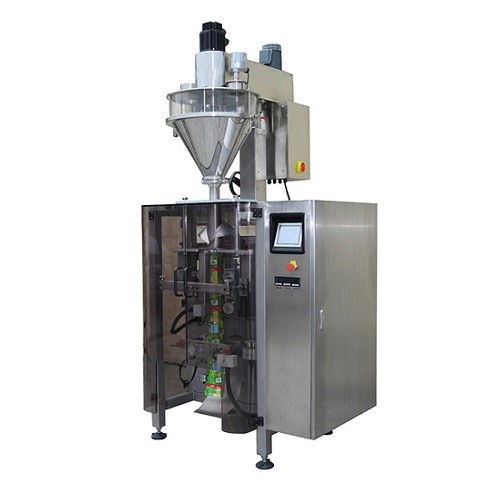

KY AUTOMATIC VERTICAL PACKAGING MACHINE

  • Category: Powder packing machine
  • Model:KY-420
  • Film width:140~420mm
  • Bag width:60~200mm
  • Packing speed:40~60bpm
  • Product description:KY AUTOMATIC VERTICAL PACKAGING MACHINE
  • INQUIRY

Servo-drive end seal jaws

End seal jaw driven by a servo-motor (intermittent motion), allowing the complete control of the sealing pressure, opening length distance and jaw mechanical position.

Servo-drive film pulling

Rubber rollers make the first film pulling to beat the inertia and weight of the film roll, therefore the work of the rubber pulling belts is extremely soft, ensuring a longer life and greater stability in the operation.

PLC control system

Program storage and retrieval function.

All operational parameters such as draw-down length, sealing time and speed are programmable.

Touch screen interface

7’ touch-Screen with simple menu-based interface.

Visualization of the main machine operations process: sealing temperature, production speed, opening of the traction belts, alarms, bags counting and the selection of the main functions like manual operation, test mode, settings of the time and parameters.

Main Technical Data

Model

KY-420

KY-520

KY-620

Film width

140~420mm

180~520mm

220~620mm

Bag width

60~200mm

80~250mm

100~300mm

Bag length

50~250mm (2'~10') On a single pull

100~300mm (2'~10') On a single pull

100~380mm (2'~10') On a single pull

Filling range

10-750g

50-1500g

100-3000g

Packing speed

40~60bpm

30~50bpm

20~40bpm

Power supply

AC 3phase, 50Hz, 380V

AC 3phase, 50Hz, 380V

AC 3phase, 50Hz, 380V

Total power

3.5kw

4kw

4.5kw

Air Supply

6kg/m2 , 0.2m3/min

6kg/m2 , 0.2m3/min

6kg/m2 , 0.3m3/min

Overall Dimension

1300×1240×1150mm

1550×1160×1480mm

1600×1260×1680mm
