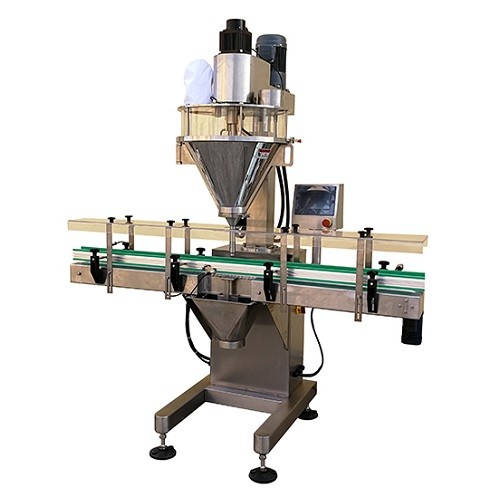

KY-L1 AUTOMATIC AUGER FILLING MACHINE

  • Product Item : KY-L1 AUTOMATIC AUGER FILLING MACHINE
  • Category: Powder packing machine
  • Model:KY-L1-S
  • Filling weight:1 - 500g
  • Filling Speed:15 – 40 bottles per min
  • Overall Dimensions:1500×760×1850mm
  • Product description:KY-L1 AUTOMATIC AUGER FILLING MACHINE
  • INQUIRY

This Machine can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.

Main features

Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.

Servo motor drive screw.

PLC, Touch screen and weighing module control.

To save all product’s parameter formula for later use, save 10 sets at most.

Replacing the auger parts, it is suitable for material from super thin powder to granule.

Include handwheel of adjustable height.

Main Technical Data

Model

KY-L1-S

KY-L1-M

Dosing mode

Directly dosing by auger

Directly dosing by auger

Filling weight

1 - 500g

10 – 5000g

Filling Accuracy

≤ 100g, ≤±2%;100 – 500g, ≤±1%

≤ 500g, ≤±1%; >500g, ≤±0.5%

Filling Speed

15 – 40 bottles per min

15 – 40 bottles per min

Power Supply

3P AC208-415V  50/60Hz

3P AC208 - 415V  50/60Hz

Air Supply

6 kg/cm2 0.05m3/min

6 kg/cm2 0.05m3/min

Total power

1.2Kw

1.6Kw

Total Weight

160kg

300kg

Overall Dimensions

1500×760×1850mm

2000×970×2030mm

Hopper Volume

25L

50L
