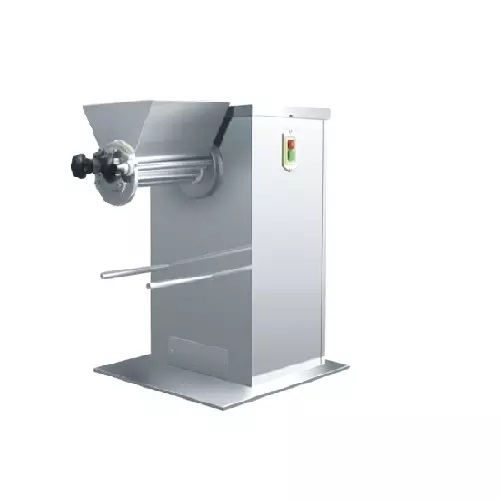

Dry and Wet Oscillating Granulating Machine

Category： Products
Product description：Stainless Steel Wet Granulation， Oscillating Dry Granulator Machine
INQUIRY

Description of Oscillating Granulators

Oscillating Granulators are available in Standard & GMP models with SS 304 / SS 316L Contact Components. Explosion proof motor is optional in some special application. Single/Double rotor is also available.

Classifications of Oscillating Granulators

* Sealed Type Oscillating Granulators: With gas-tight structure at both ends of granulation shaft, it effectively locks the
material into the sealing cover.

* No Rack Type Oscillating Granulators: A unique reducer owned by Junzhuo, made the whole machine enclosed. The gearbox has no rack bar and skateboard. There is no sliding friction, and the transmission efficiency is much higher. The clean and sanitary
environment meets GMP standard.

* Explosion-Proof Oscillating Granulators: All models can be customized to meet explosion-proof production environment.

* Large Power Oscillating Granulators: Upgrade the transmission gear box and motor, oscillating pharmaceutical granulator is
suitable for powder products and high proportion materials.

Model	Rotor Diameter	Rotation Speed	Swaying Angle	Final Product Dimeter	Motor Power	Capacity	Overall Dimension	Approx. Weight
KY-160YZ	160mm	60r/min	360°	1-5mm	3kW	50-300kg/h	8508201080mm	210kg
KY-160YZ	160mm	55r/min	360°	1-5mm	5.5kW	100-400kg/h	9507801210mm	300kg
KY-160YZ	160mm	40r/min	360°	1-5mm	5.5kW	100-400kg/h	11607201250mm	450kg
KY-2501YZ	250mm	40-50r/min	360°	1-5mm	5.5kW	150-550kg/h	11508201270mm	600kg
KY-2502YZ	250mm	40-50r/min	360°	1-5mm	7.5kW	200-600kg/h	12509501300mm	750kg
KY-2503YZ	250mm	40r/min	360°	1-5mm	11kW	300-600kg/h	17009001350mm	1000kg
KY-3201YZ	320mm	35r/min	360°	1-5mm	7.5kW	300-700kg/h	14008001500mm	800kg
KY-3202YZ	320mm	35r/min	360°	1-5mm	11kW	300-800kg/h	14508001500mm	1050kg
KY-3203YZ	320mm	35r/min	360°	1-5mm	15kW	300-800kg/h	17009001400mm	1250kg
KY-350YZ	350mm	35r/min	360°	1-5mm	11-15kW	400-1200kg/h	21008601540mm	1250kg
