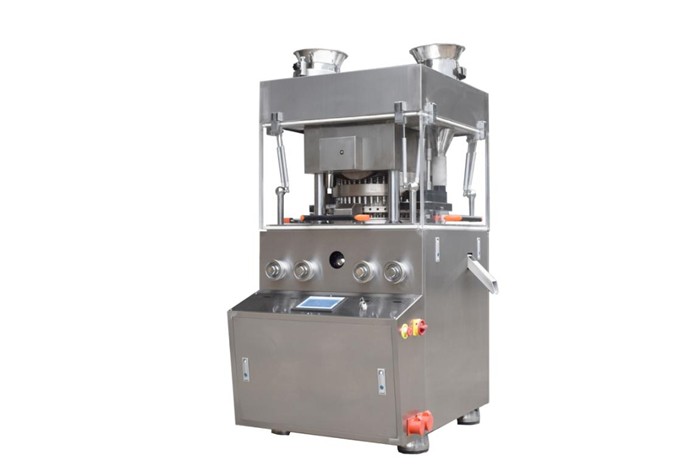

KY420D Full-automatic Tablet Press Machine(PLC control)

Model

Parameter

KY420-31D

Punch pin number

31

Punch diameter

26mm

Die diameter

34mm

Production range

(10,000 tablets/h)

111600

Rotating speed (rmp)

0-30

Maximum pressure

100KN

Maximum filling depth

15mm

Tablet thickness

0.5～6mm

Maximum tablet diameter

Ф20mm

Maximum abnormal axis size

＜25mm

Punch length

115mm

Working noise

≤70dB

Total power

5.5KW/380V，50Hz,three-phase five-wire system

Bounday dimension of equipment

1240*850*1850 mm

Net weight of equipment

1750kg

Remark

The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type.

Name

Type

Manufacturer

Motor power

5.5kw-6poles

Shanghai Dedong

Transducer

P/N 132F0026

Danfoss

PLC

S7-200

Siemens

HMI

7"

Siemens

Cocontactor

3TB4322-OX 220V

Siemens

Contactor

3TB4022-OX 220V

Siemens

Relay

MK2P-1/AC220V

Omron

Relay

MK2P-1/DC24V

Omron

Thermorelay

JR36B-20

Siemens

Magnetic Ballast for Fluorescent Lamp

BPL9W220VB2SC

Phillips

Little Triphase Breaker

5SJ63

Siemens

Emergency Stop Button

AR22V2R-11R

Fuji

Indicator Light

DR22E3L-E4G

Fuji

Travel Switch

LX19-001

Shanghai Huatong

Fan

FK3321.100

Shanghai Leipu Electric

Register

In accordance with appliance eg:40:1×30

Shanghai Handwheel Revolution

Rattle Ware

DR22BS-220V

Fuji

Switch

HGS-25-24

Shanghai Hengji

Screw Fuse Porcelain Base

RL1-15

Shanghai Huatong

Product No.

XCJ-1.1

Air-breathing Volume (m3/h)

360

Min. Vacuum Target (pa)

19500

Total Power (kw)

1.1

Overall Size (mm)

700*460*1030

Weight (kg)

70
