  • KY-8 Capsule And Tablet Counting Line

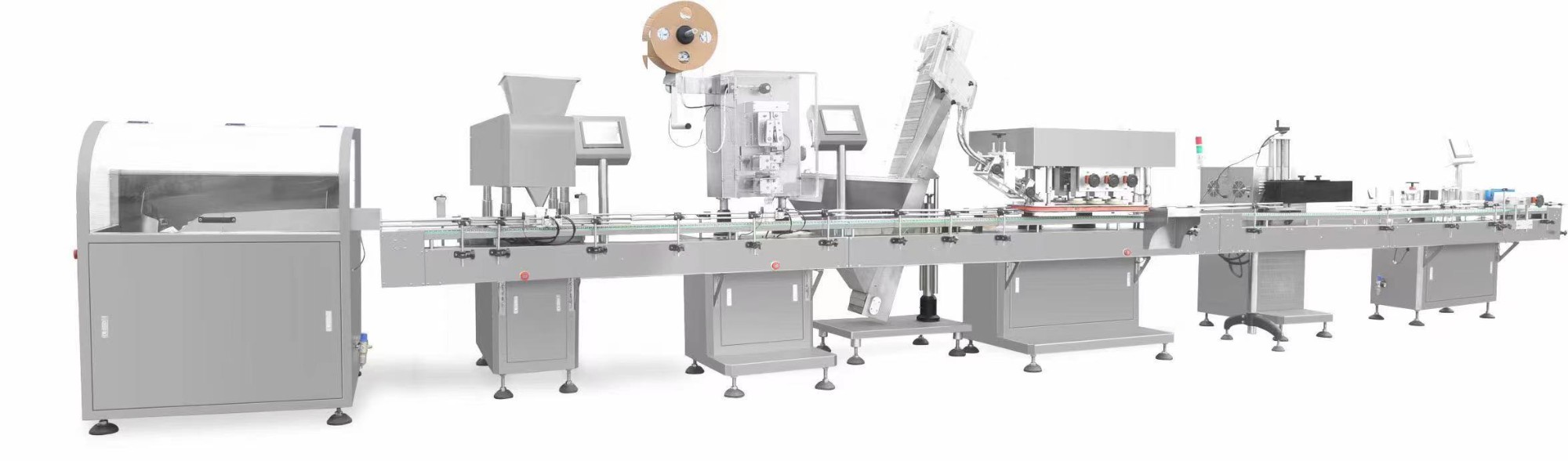

KY-8 Capsule And Tablet Counting Line

  • Product Item : KY-8
  • Category: Tablet& capsule automatic counting line
  • Hopper Volume:20L
  • Capacity:20-30bottles(50-100 pcs/bottle)/min
  • Bottle Size:Diameter: 30-75mm Height:40-250mm
  • Product description:Capsule And Tablet Counting Line

1. Unscramble bottle machine

The motor runs by the gear then it makes the neatening flower plate work.The bottles in the bottle container rotate from the under part to the upper part of the bottle neatening plate by the semicircle  groove of the bottle neatening flower plate.The bottles in the semicircle groove neaten by the bottle turning board of the bottle neatening system.It can turn the bottles which are upside down automatically.

2.Automatic Capsule and Tablet Counting Machine 3-22mm tablet(UL)

Automatic Electronic counting machine is special for counting tablets, soft gelatin, hard capsule and chewing gums, etc. This machine adopts 8 sets imported counting sensor for counting with 8 Guiding Way and two head. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.

3.Automatic Cotton Inserting Machine

Artificial pull product loading to the edge of cotton roll. Machine can run automatically, Automatically into, snap, stuffing material pipe, go to the bottle mouth, into the bottle. Device automatically put the bottle in the right position, when positioning the time meet the parameters set on the PLC, automatic bottle change by pneumatic system. Can realize full automatic operation and containing several times.

4.Bottle Capping Machine with cap elevator(UL)

The machine adopts three groups of friction rollers to screw caps. Screwed caps are not easily damaged by the screwing unit. And if caps are not screwed tightly or tilted, they will be found and rejected automatically. The screw capper is available for various bottles and its changeover is fast and easy. The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption. It also provides international brand PLC controls, variable frequency controls and photoelectric controls. The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity. Generally operators can grasp fluently. The machine conforms to the requirements of GMP completely.

5.Induction Sealing Machine(UL)

Intermediate frequency power supply of the machine makes effective output power great and output current adjustable. It also auto tracks change of current load and makes adjustment in time. If there is no bottle in the specified position, it will stop automatically to save electric power. The machine is available for various bottles. The special sealing induction plate is completely shielded without electromagnetic pollution and its safety is superior to high-frequency power supply. Coding system of the machine adopts built-in water circulation to save water consumption and reduce water pollution; it also has pressurizing system which features good cooling conditions, short sticking time, firm sealing and high stability. Even if the mouth of the bottle is moist with many kinds of liquid, the machine still seals perfectly. If water stop, The machine will sound alarm. Besides, some mechanism protects the machine from being damaged by over current, over voltage and under voltage. And it also has functions of continuous counting and automatic rejection of caps without aluminum foil. The product confirms to the requirements of GMP.

6.Round Bottle Single Side Labeling Machine (UL)

Put the bottles into the conveyor system (or Auto Bottle Ordering Machine is optional), the conveyor will transport the bottles to labeling station. There is automatic sensor equipped on the machine will sense the passed bottle and feedback to PLC. The PLC gets the signal, then feedback to Step Motor, the step motor supplies the Label to Rotation Pressing Roller which makes the labeling process.

7.Turn Table (collect bottles)(UL)

• All Stainless Steel Construction to meet the GMP Standard

8.Ink Jet Printing Machine(with one meter Conveyor belt)(UL)

High efficiency, High Speed, Fully Automatic, Highly Intelligent

It adopts Module Style Design with low power supply electricity system.

The hardware is highly integrated with reasonable structure for anti-interference purpose.

The printing content can be changed and amended while printing, no need to stop the production.

For special requirements, our Software can be highly customerized by clients.

It adopts advanced Ball Style viscosity controlling technology for detecting and adjusting the viscosity of ink.
