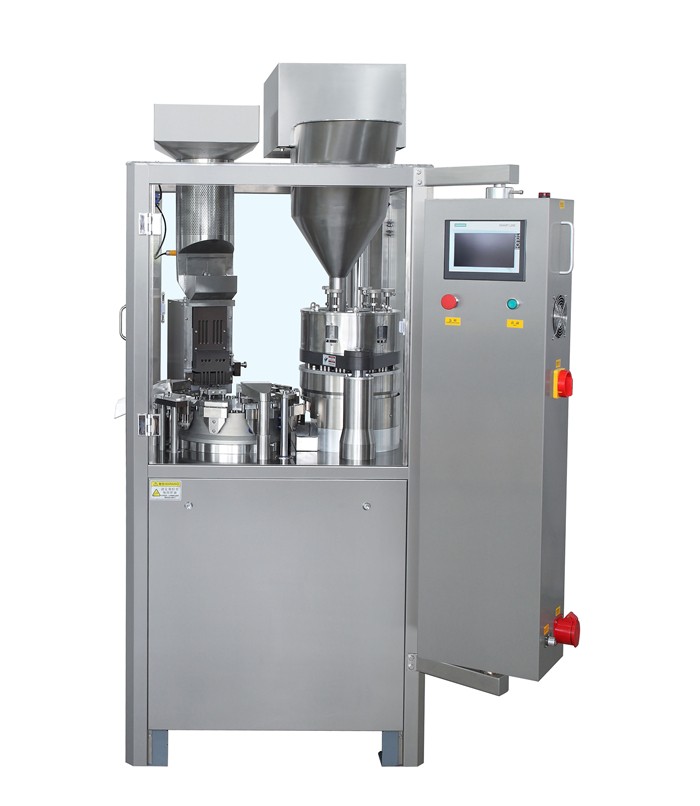

NJP-1200 Model Fully Automatic Capsule Filling Machine

Main Technical Parameter：

Model	NJP-1200
Output	1200 Capsules/min
Filling dosage	Powder、Pellet
No.of segment bores	9
Power Supply	380V 50Hz 3P
Capsule Size	00#-4#capsule
Filling error	±3%－±4%
Noise	≤78dB（A）
Making rate	Empty capsule99.9% Full capsule over99.5
Machine Dimensions	10208601970mm
Machine Weight	900kg

List Main Electrical Component：

NAME	SPECIFICATION TYPE	QTY.	MANUFACTURER
TOUCH SCREEN	TK60711Q	1	TAIWAN WEILUN
PLC	14ES	1	TAIWAN TAIDA
SWITCH POWER	S-35-24	1	TAIWAN MINGWEI
AC CONTACTOR	NXC-12	3	CHINA CHNT
AC CONTACTOR	NXC-25	3	CHINA CHNT
AIR SWITCH	3P25A,1P6A	2	CHINA CHNT
THERMAL RELAY	NXR-25 4-6A	2	CHINA CHNT
THERMAL RELAY	NXR-25 2.5-4A	1	CHINA CHNT
INVERTER	1.5KW	1	CHINA SANJING
MAIN MOTOR	PL30	1	TAIWAN DONGLI
BEARING	EASE IKO	122	JANPAN
VACCUM PUMP	SK SERIES 1.5kw	1	SHANGHAI
DUST COLLECTOR	XCJ SERIES 1.1kw	1	OUR FACTORY
HIGH PRECISION CAM GRADUATOR	83-6,83-10	2	CHINA SHANDONG
MATERIAL POSITION DETECTOR	PD-M25NB	1	CHINA DONGTOU
