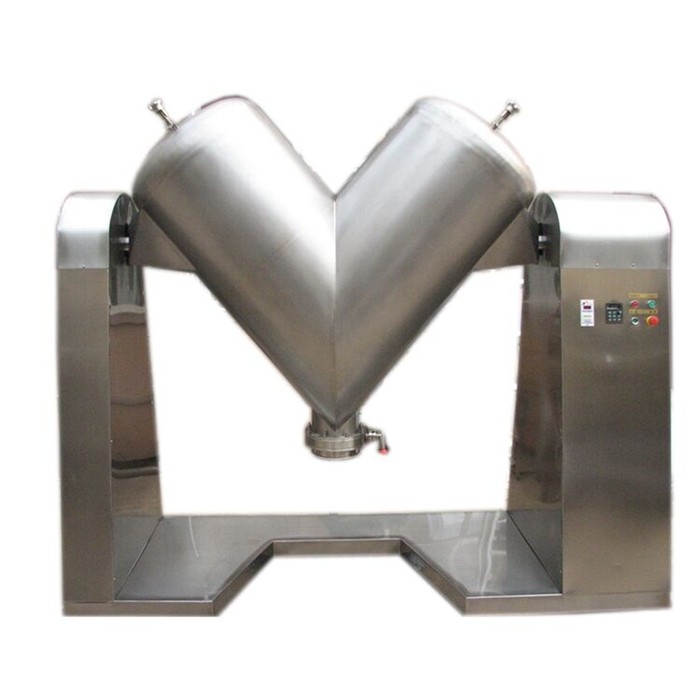

MIXING MACHINE

Product Item : MIXING MACHINE
Category： Mixer
Product description：MIXING MACHINE
INQUIRY

Usage:
This mixer is suitable for the mixing of dry granule materials for phamacy or other relative industries.
Specialtv:
Unique mixing cylinder,high mixing effects,no dead angle,even mixing.

Model	VH0.1	VH0.2	VH0.3	VH0.5	VH1.0	VH1.5	VH2.0	VH2.5	VH3.0
Item
Total Volume(m³)	0.1	0.2	0.3	0.5	1.0	1.5	2.0	2.5	3.0
Optimal loading（kg)	20	40	60	100	200	300	400	500	600
Maximum loading(kg)	50	100	150	250	500	750	1000	1250	1500
LWH(MM)	19008001190	20108501440	22209001470	24009502490	290010002880	300011003110	320012003350	340013003800	360014003950
Diameter of cylinder	Φ200	Φ400	Φ500	Φ600	Φ800	Φ900	Φ1000	Φ1100	Φ1200
Diameter of feed port(mm)	Φ250	Φ300	Φ300	Φ300	Φ400	Φ400	Φ400	Φ400	Φ400
Diameter of discharge port(mm)	Φ80	Φ100	Φ100	Φ150	Φ150	Φ200	Φ200	Φ200	Φ200
Cylinder speed(kw)	15	15	15	13	10	10	10	8	8
Power(kw)	1.1	1.5	1.5	1.5	3.0	3.0	5.5	7.5	7
