DPB-80 Flat Plate Automatic Blister Pack

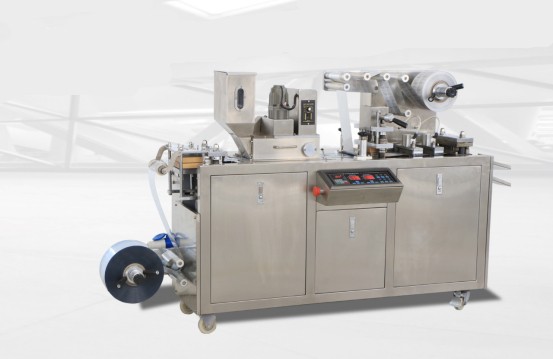

DPB-80 Flat Plate Automatic Blister Packing Machine
- Product Item : DPB-80
- Category： Blister packing machine
- Production Capacity: Alu-PVC: 2100 (According to standard plate 80×57)
- Power:220V 50Hz 1.8kw
- Air Pressure (Mpa)：0.4-0.8
- Dimension(L*W*H): 1760×760×1300mm
- Product description：Automatic Blister Packing Machine
Main Technical Parameters：
|
Cutting Frequency (Times/min) |
Alu-PVC: 10-35 times/min |
|
Max. Production Capacity (Blister/h) |
Alu-PVC: 2100 (According to standard plate 80×57) |
|
Max. Forming Area and Depth (mm) |
Alu-PVC: 70×110×26 (Standard 70×90×14) |
|
Travel Range (mm) |
20-80 (Can be manufactured as user's requirements) |
|
Air Pressure (Mpa) |
0.4-0.8 |
|
Standard Plate (mm) |
80×57 (Can be manufactured as user's requirements) |
|
Total Power |
220V 50Hz 1.8kw |
|
Main Motor Power (kw) |
0.75 |
|
PVC Rigid Sheet (mm) |
0.15-0.5×80 |
|
PTP Aluminum Foil (mm) |
0.02-0.035×80 |
|
Dialysis Paper (mm) |
50-100g×80 |
|
Mould Cooling |
Tap Water or Circulating Water |
|
Overall Dimensions (mm) |
1760×760×1300（L×W×H） |
|
Weight (kg) |
450 |

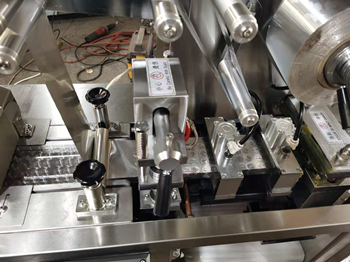

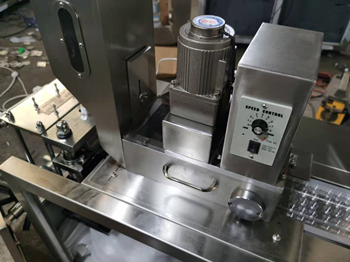

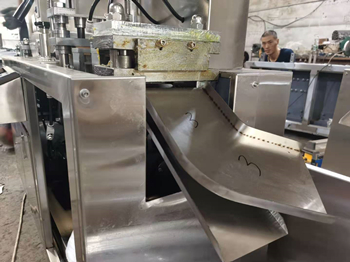

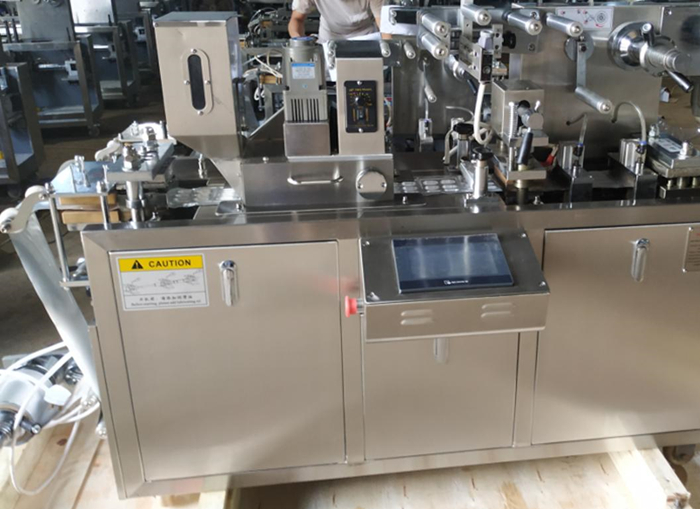

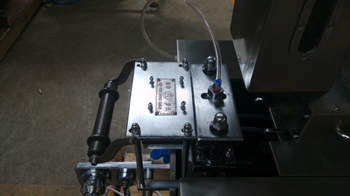

Machine Picture:
UNIVERSAL FEEDER(BRUSH FEEDER) FORMING STATION
SEALING STATION, TRACTION STATION OUTPUT
