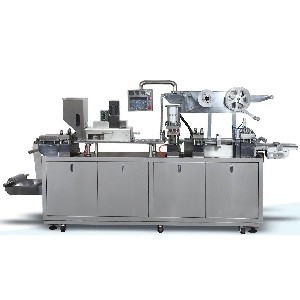

DPP-250 Automatic Blister Packing Machine

Product Item : DPP-250 Automatic Blister Packing Machine
Category： Blister packing machine
Travel Range (mm):40-160
Standard Plate (mm):80×57
Air Pressure (Mpa):0.4-0.6
Product description：DPP-250 Automatic Blister Packing Machine
INQUIRY

Main Technical Parameters

Cutting Time (t/min)	Alu-ALu 6-25 Alu-plastic 6-50
Max. Production Capacity（pcs/h）	Alu-Alu ≤110000 Alu-plastic ≤230000
Max. Forming Area And Depth (mm)	Al-Al 240×150×15 Al-plastic 240×150×26
Travel Range (mm)	40-160 (Can be manufactured as user's requirements)
Standard Plate (mm)	80×57 (Can be manufactured as user's requirements)
Air Pressure (Mpa)	0.4-0.6
Air Supply	≥0.3m³/min
Total Power	380V/220V 50Hz 6.2kw
Main Motor Power (KW)	1.5
Forming Aluminum (mm)	0.10-0.15×250
PVC Sheet (mm)	0.15-0.5×250
PTP Aluminum Foil (mm)	0.02-0.035×250
Dialysis Paper (mm)	50-100g×250
Mould Cooling	Tap Water Or Circulating Water
Overall Dimension (mm)	3000×730×1600（L×W×H）
Weight (kg)	1600

1.Overview
The machine is the latest product in our company adopting PLC, frequency converter, and man-machine interface. It can check on-line and eliminate the waste plate by itself. In accordance with GMP rule requirement, it is an ideal blister packing machine for aluminum-aluminum, aluminum-plastic, paper-plastic packing. And it has got high popularity. The products have been appraised as the provincial science and technology accomplishments.
