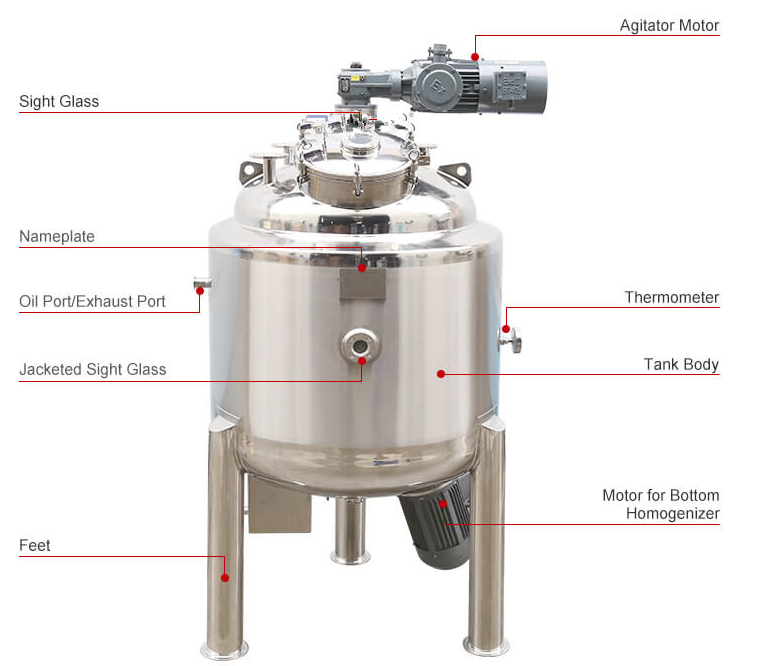

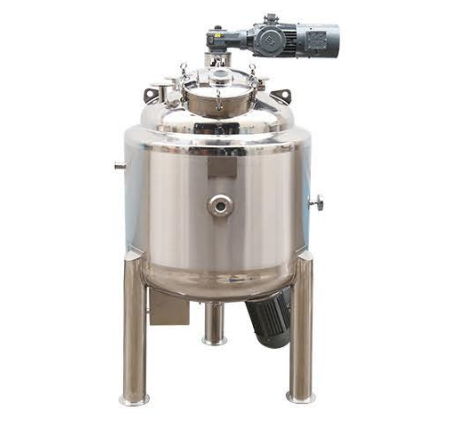

500L electric heating kettle bottom emulsification stirring tank

Category： Mixer
Product description：Hot Sale Jacket 500l, Stirring Stainless Steel Hot Water Tank ,Electric Heating Emulsification Tank
INQUIRY

Technical support:

Random provide equipment drawings(CAD），the installation drawing,the product quality certificate,installation and operating instructions,etc.

Capacity(L)	Motor power(kw)	Tank body height(mm)	Tank body diameter(mm)	Mixer speed(r/min)	Working pressure(mpa)	Working temperature	Accessories
300	0.55	600	800	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
400	0.55	800	800	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
500	0.75	900	900	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
800	0.75	1000	1000	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
1000	0.75	1220	1000	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
1500	1.5	1220	1200	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
2000	2.2	1500	1300	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
3000	3	1500	1600	36r/min(0~120r/min is optional)	≤0.09Mpa(atmospheric pressure)	<160℃	Thermometer safely valve pressure gauge
